SPECIFICATIONS

Brand Name: XMSJ

High-concerned chemical: None

Origin: Mainland China

Stitch Formation: Overlock Stitch

Type: Industrial Sewing Machine

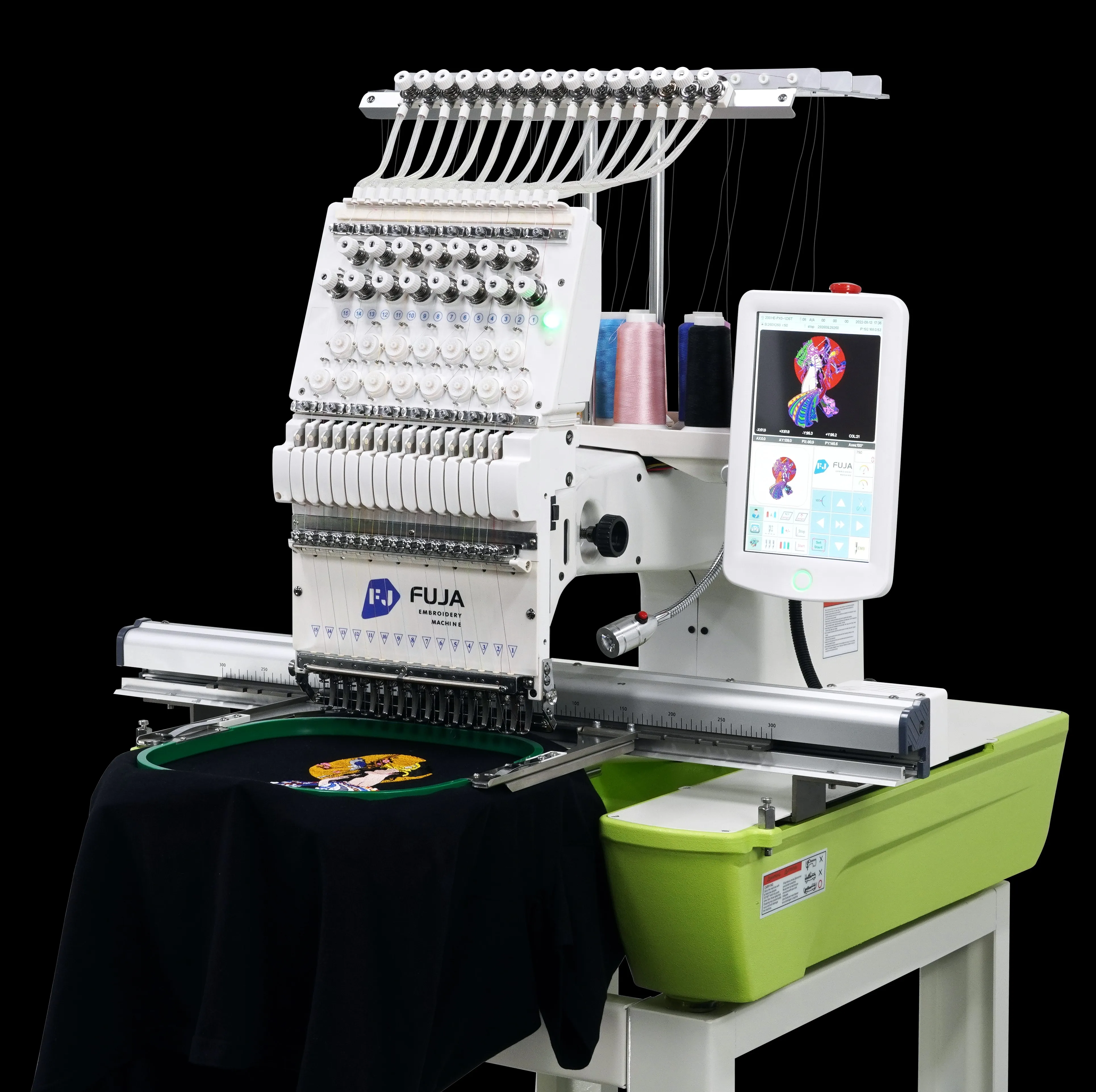

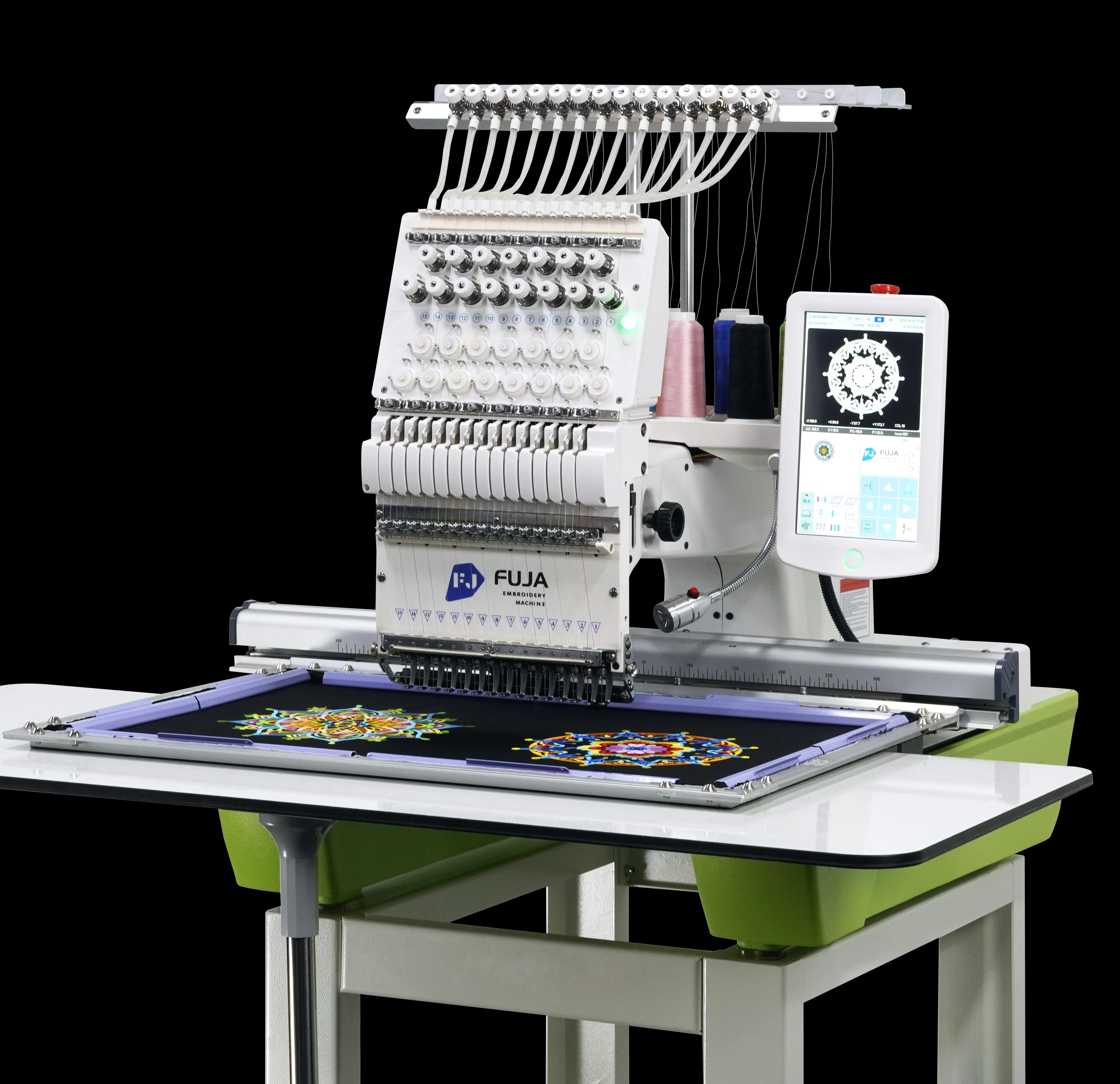

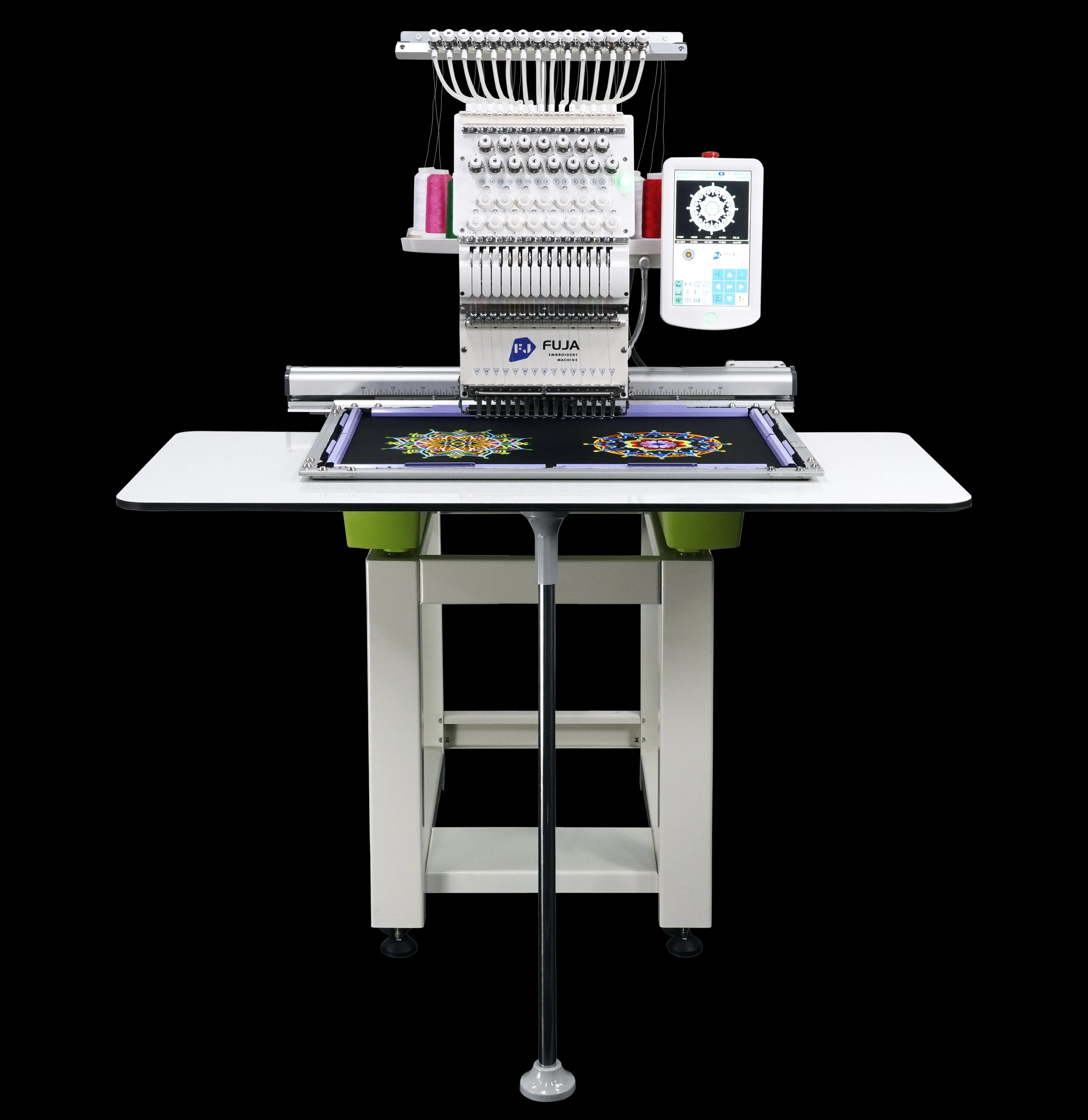

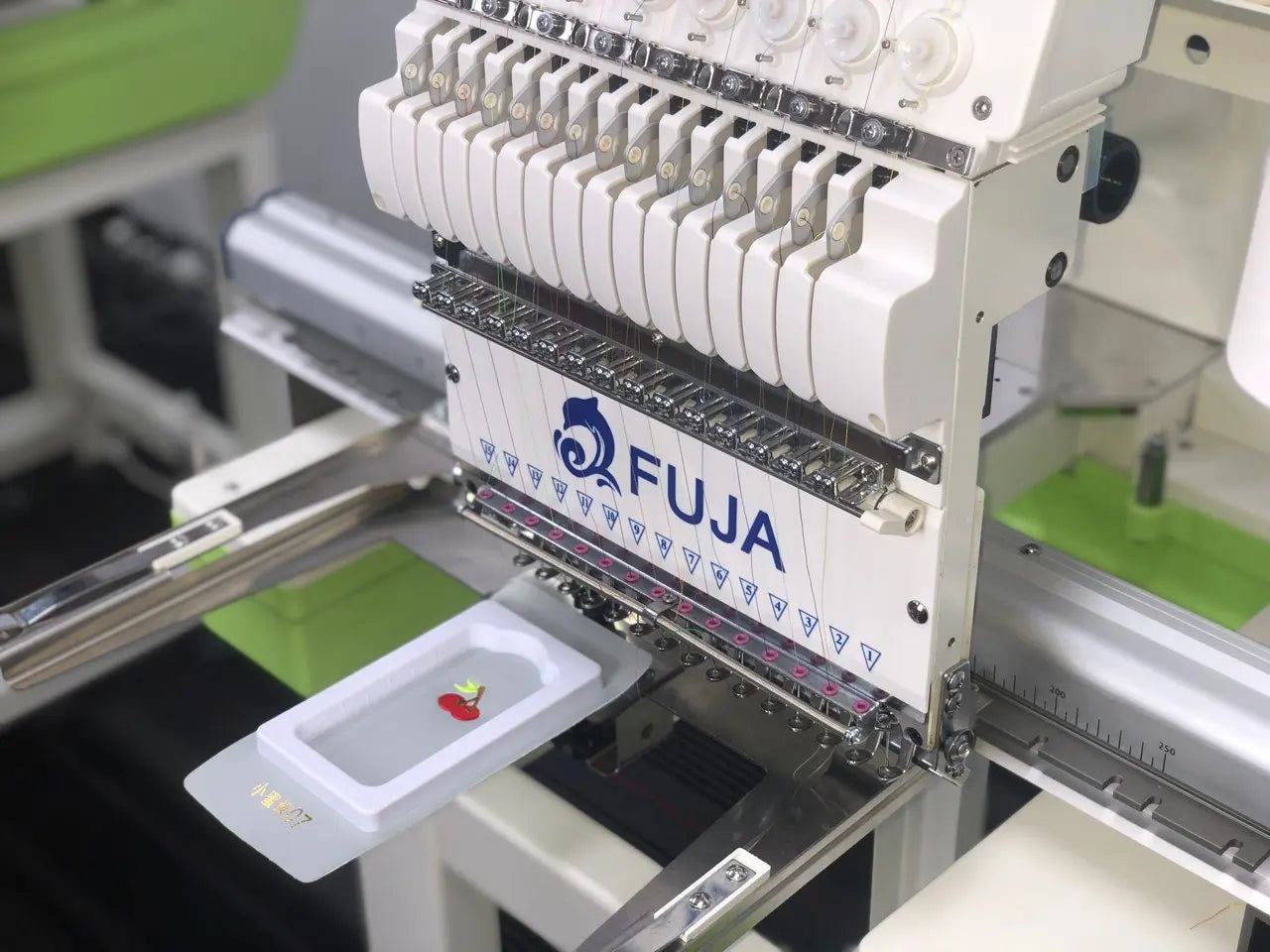

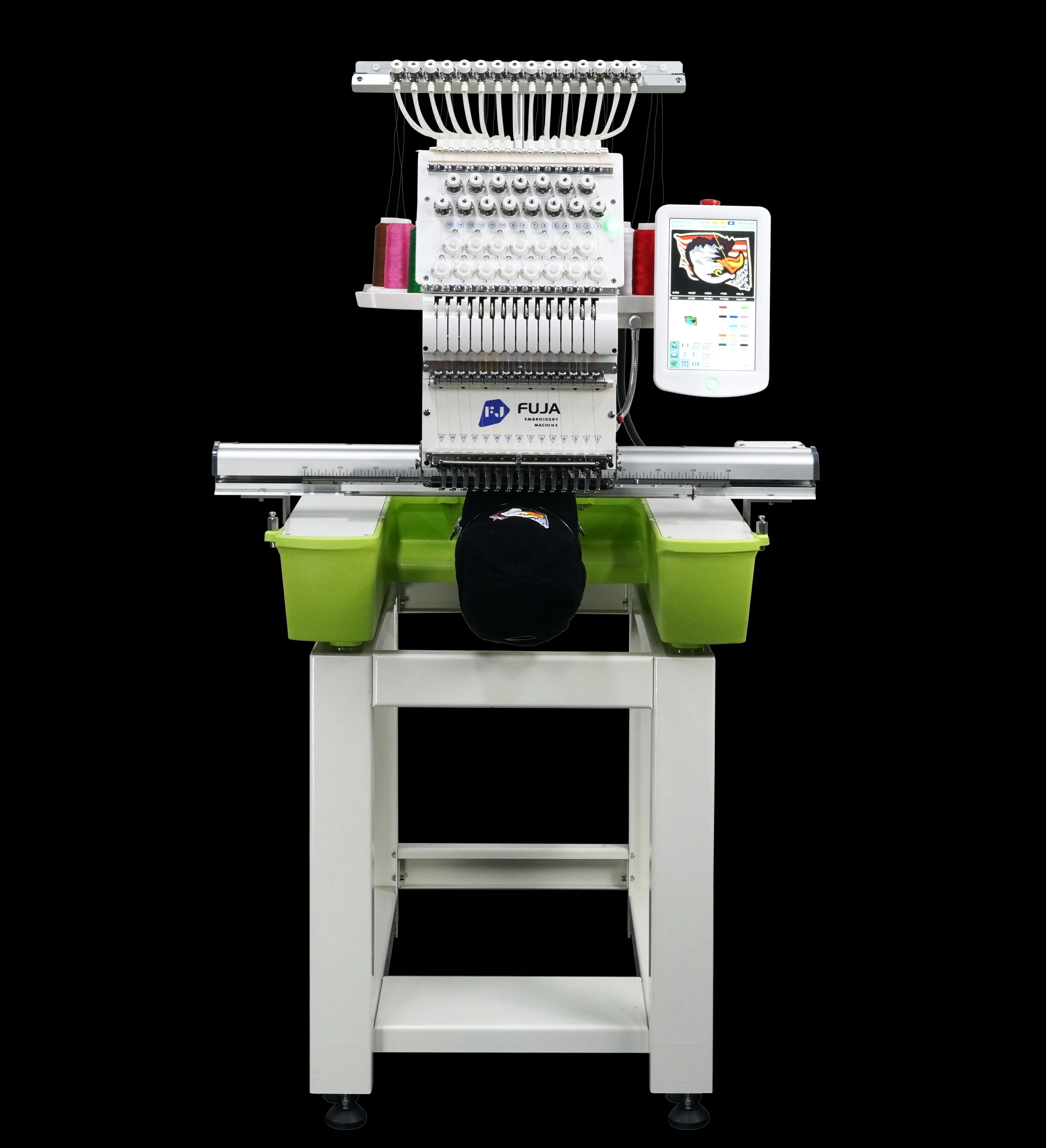

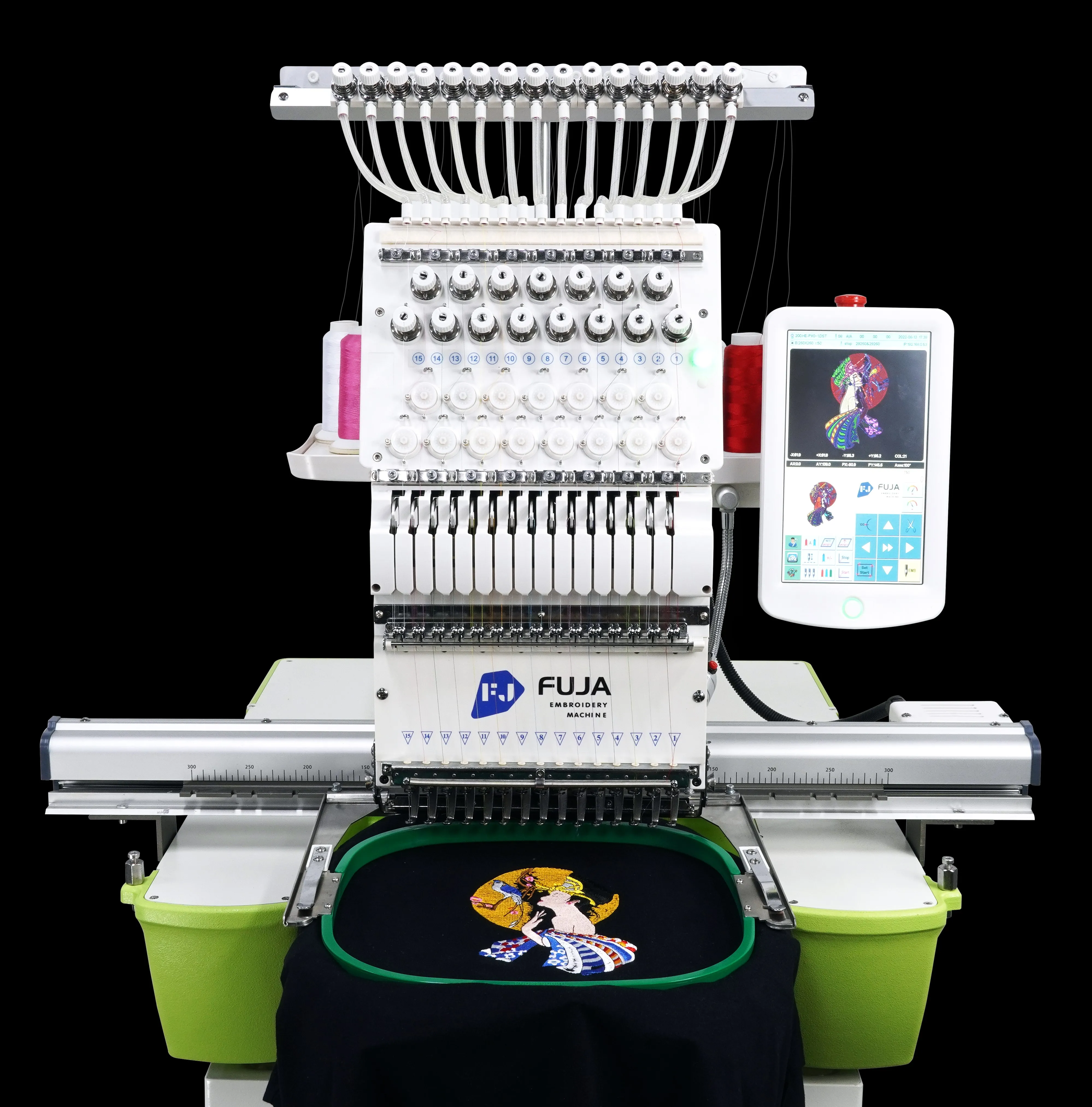

SINGLE HEAD COMPUTER EMBROIDERY MACHINE   FJ-1501C

FOR PROFESSIONAL EMBROIDER

FUJA FJ-1501C commercial 12/15 Needle computer single embroidery machine is perfect for the professional embroiderer.

This industrial-grade machine can handle even intricate designs quickly and efficiently.  It is easier, smoother than ever before and makes your embroidery business win at the starting line!

Head And Needles	Single Head,12/15/20 needles
Embroidery Area	Y400mm * X600mm
Application	Flat embroidery/caps/garments/shoes/belts/gags/socks/phone case/pillow/gloves jeans/ t-shirts/bags c ar seat cushions/mousepad/ towel/headband,etc..
Computer	User-friendly,10 inch high definition true color  touch screen with USB port
Maximum Speed	1200 RPM
OPS Languages	English/español/Français/Italiano/Deutsch/Русский/中文/한국인/عربي/Türk/ Tiếng Việt,... totaly 18 languages supported
Design Formats	DST, DSB etc. format; Online lettering with 10 kinds of popular fonts
Memory Capacity	100 million stitches,stitch range:0.1mm~12.7mm
Auto Functions	Auto thread trimmer,auto color change,auto thread break detection
More Functions	Trace with laser,save start point,28 bulit-in font libraries
Power Supply	AC100~240V,50~60Hz apdaptable,DC36 safe voltage output
Standard Accessories	Extanded table,sash frame,bodding winder,cap rings(2 sets), 270° cap driver(1 set),hoop station(1 set),FUJA tool kit,16GB U Disk
Hoops Included	Round hoops( 9cm, 12cm ,15cm,20cm)     2pcs/per size;   Square hoops(29cm*29cm)2 pcs   Oval hoops(54cm*36cm)1 pc
Optional Devices	Sequins/Cording/Beads/Peals/Laser Cutting/Thermal Cutting/Boring Device

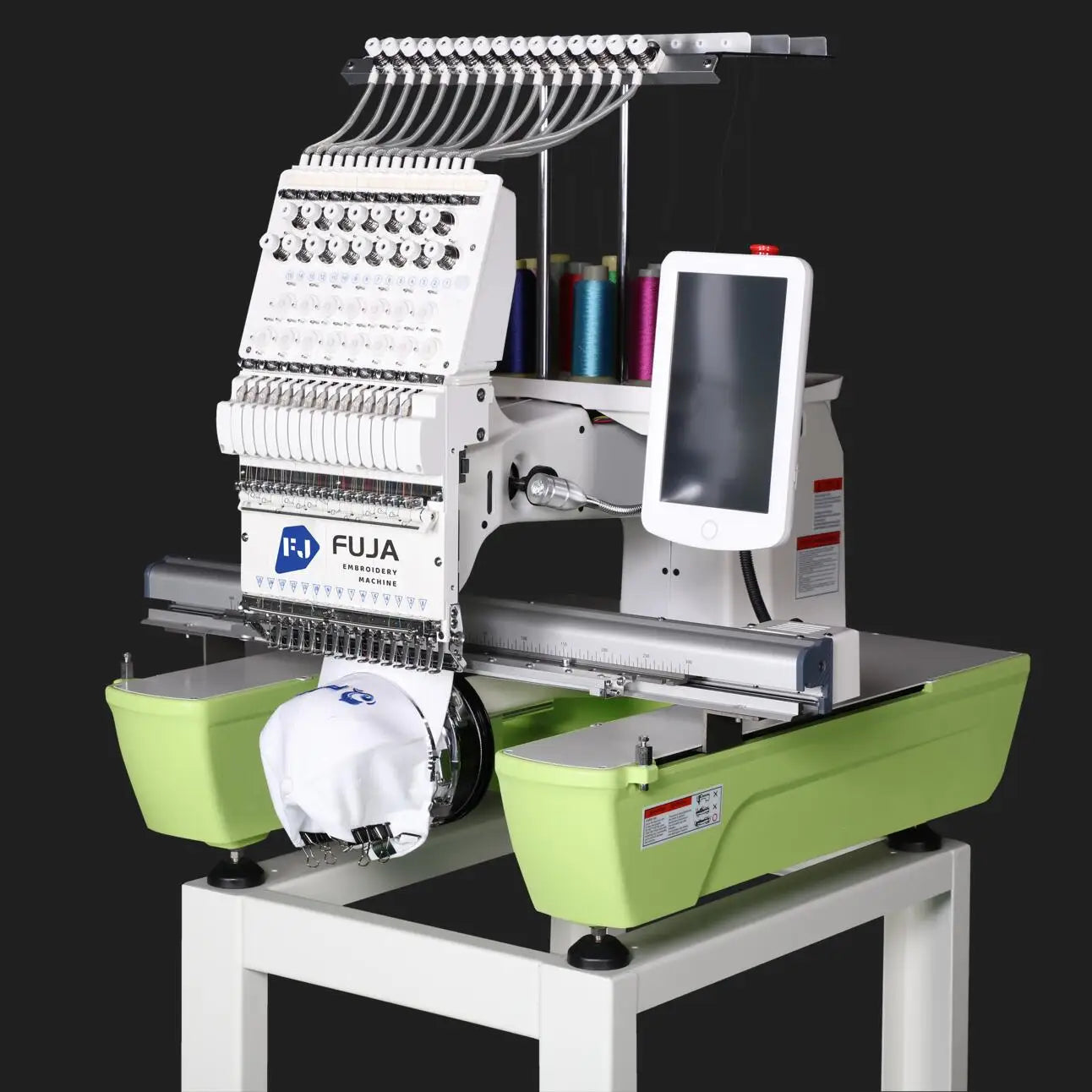

CLASSIC PROFESSIONAL EMBROIDERY MACHINE

It is quite stable model. It can do caps, garments,bags, hoodies jackets, leather, shoes, patches embroidery etc. This single head embroidery machine is perfect for your startup embroidery business.

FUJA embroidery machine passed rigorous testing in European laboratories,the needles ,whole head ,motors are made of the top level,and the machines are designed in European R&D team.

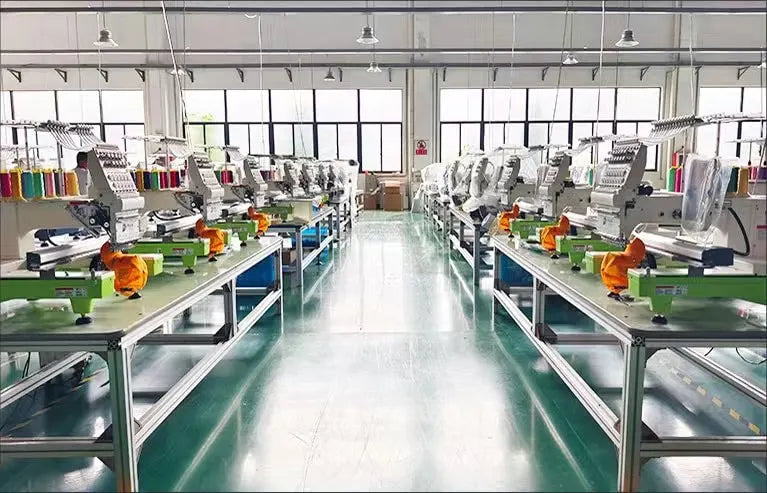

In China, FUJA choosed a professional and mature team in the industry for assembly,IPQC,Packing,etc.

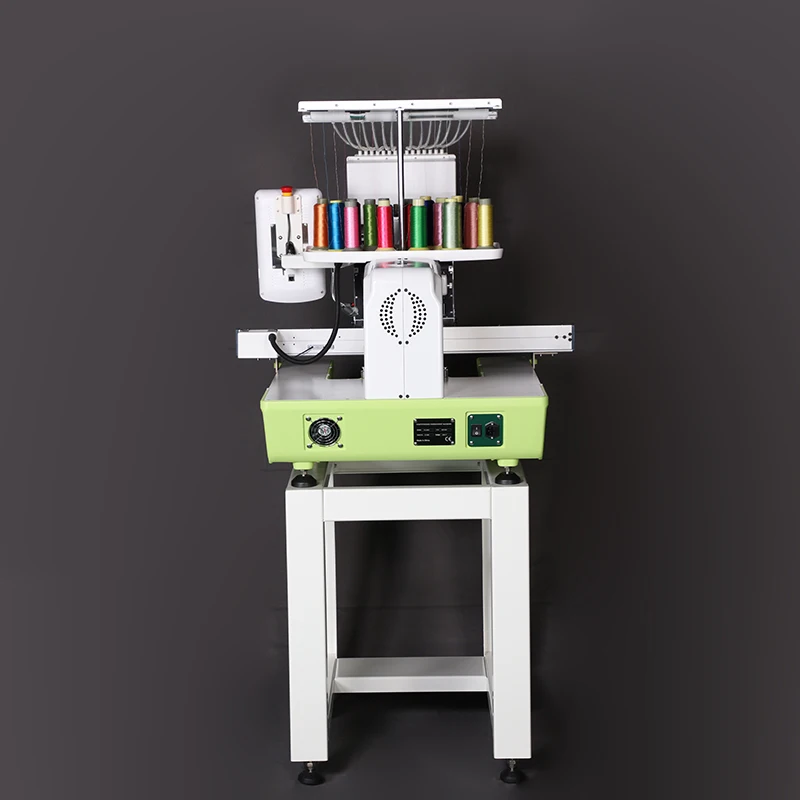

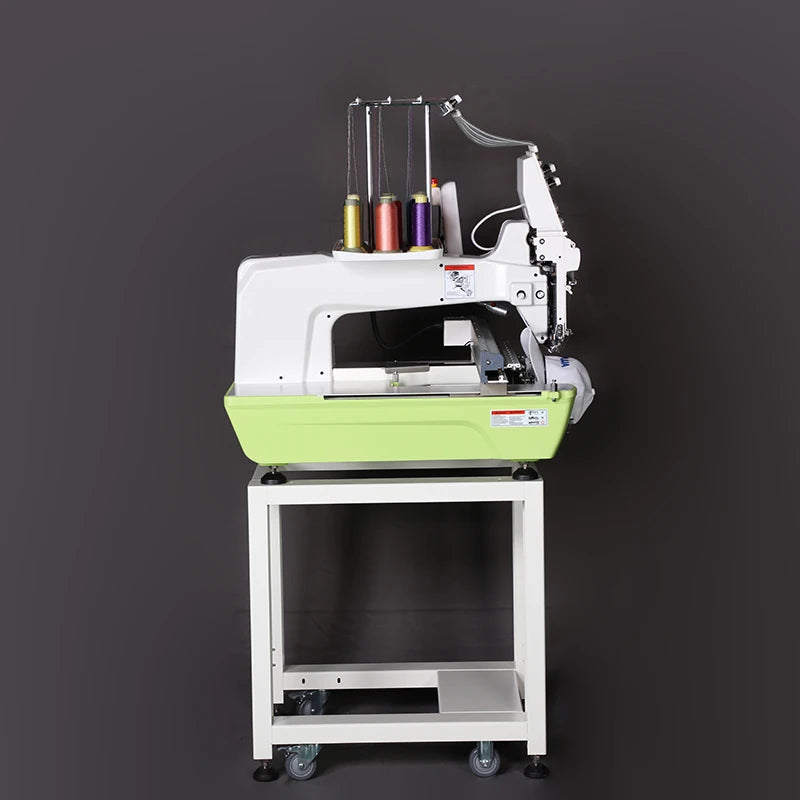

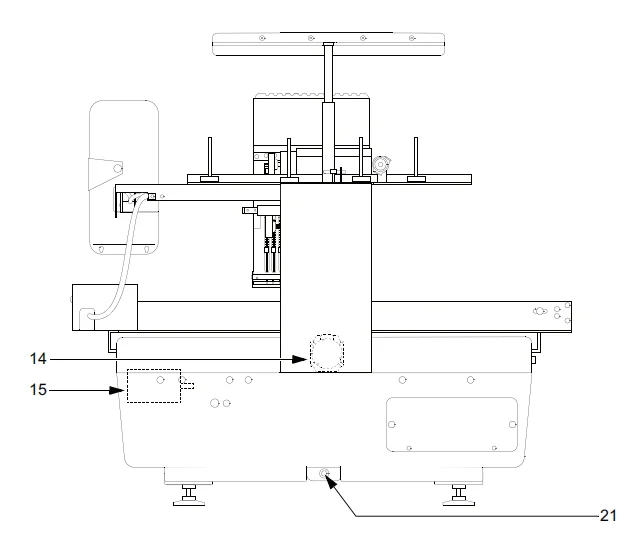

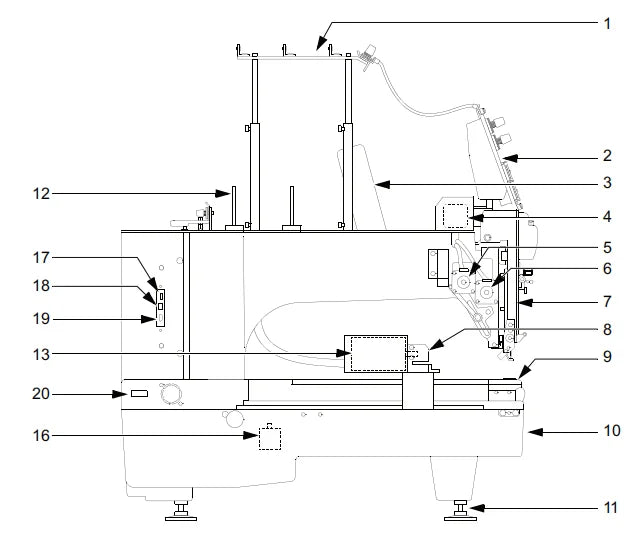

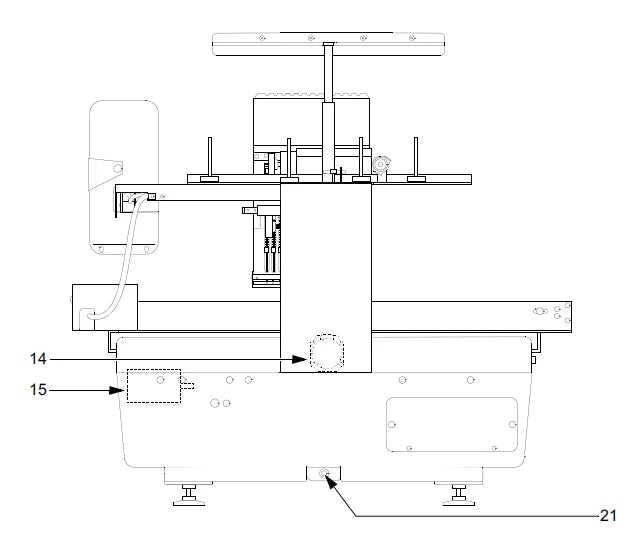

                                                                MAIN PARTS

1.Thread guide system

2.Tension base

3.Operation panel box

4.Color change motor

5.Thread holding motor

6.Jump motor

7.Needle bar case

8.Z-spec. frame

9.Needle plate

10.Stand

11.Leveling adjuster





12.Thread stand stud

13.X-axis motor

14.Main shaft motor

15.Y-axis motor

16.ATH motor

17.USB port

18.LAN port

19.Serial port

20.Power supply connector

21.Oil-drain hole

                                                              STANDARD CONFIGURATION

FUJA HOOP STATION (1 set)

effectively fixing the position of the hat without shifting. The whole set of Cap Embroidery Frames contains 3 parts: cap station,
cap hoop*2 and cap driver.

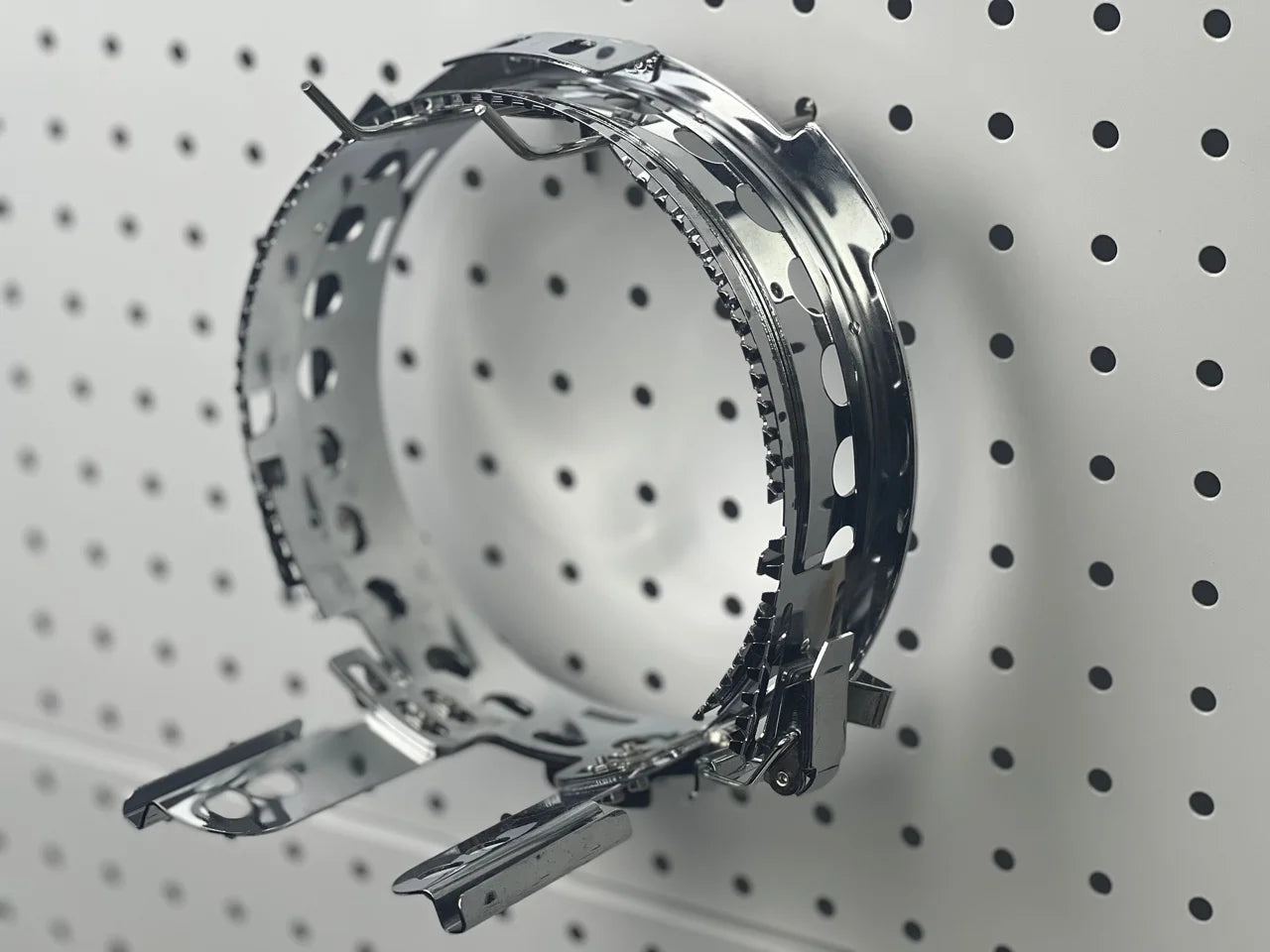

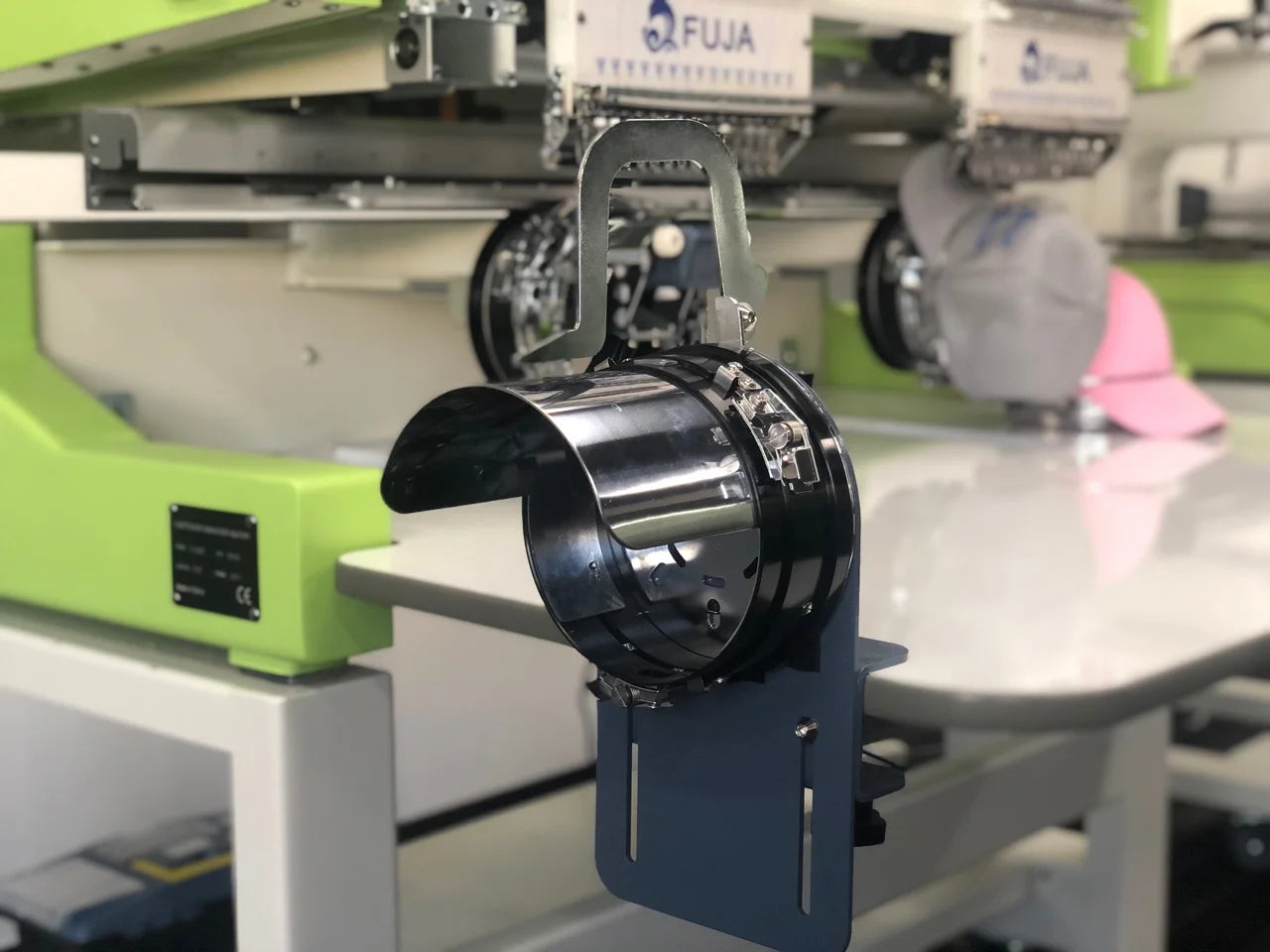

FUJA CAP RING (2 sets)

Designed for women's hand strength characteristics, pay more attention to safety performance and ease of use,FUJA has its own cap ring------more safe and easy.

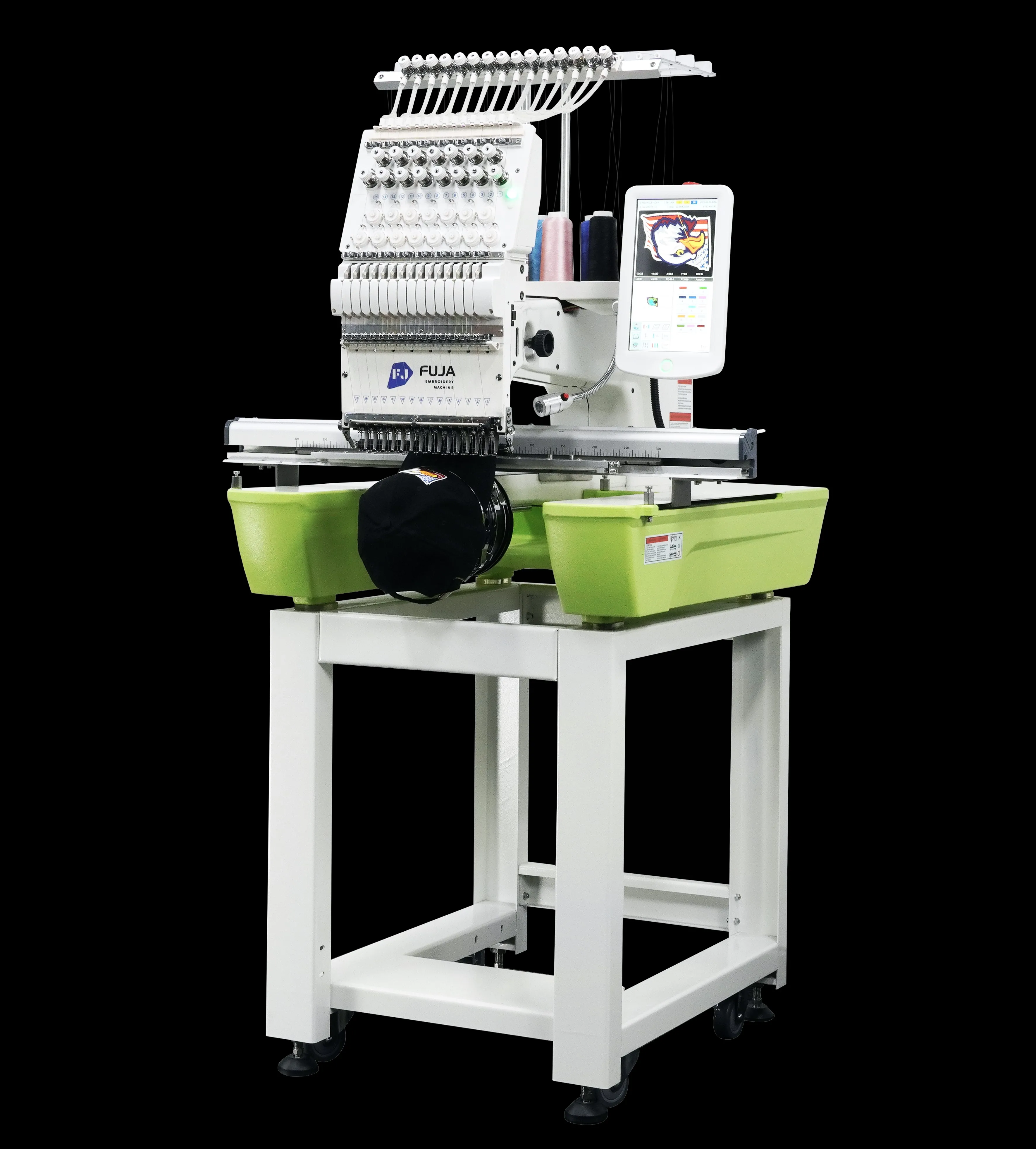

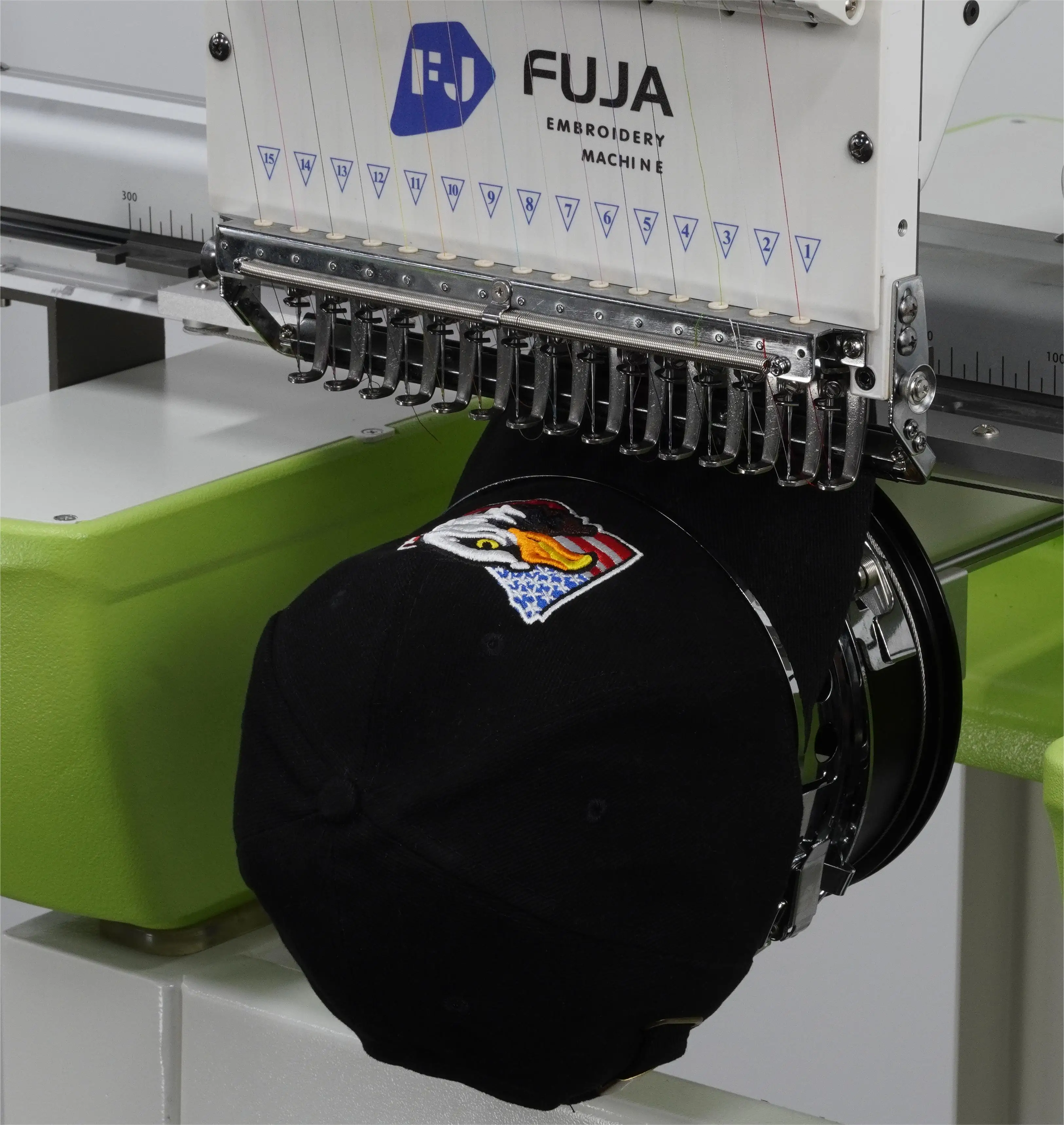

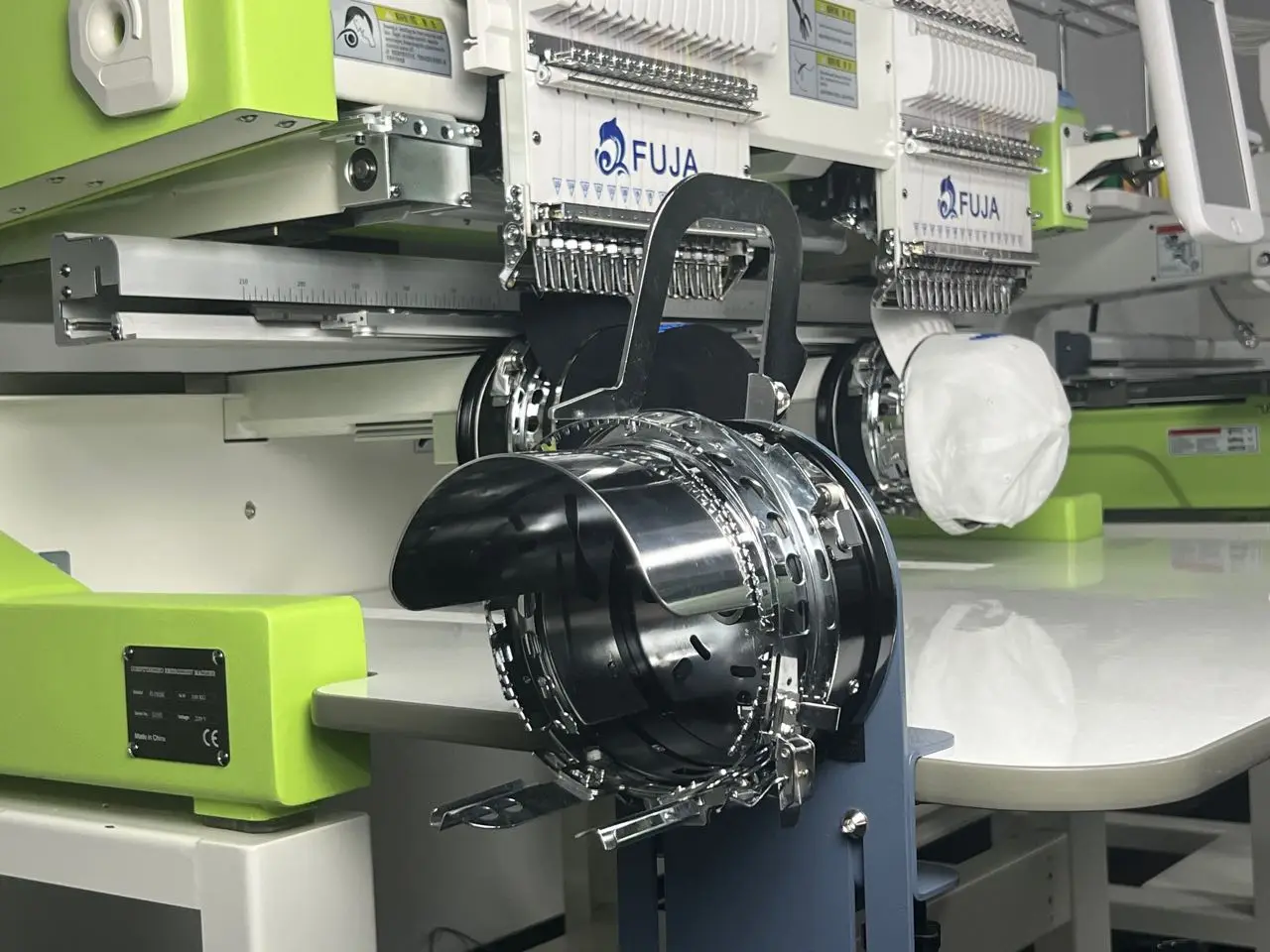

270° CAP DRIVER (1 set)

Wide Angle Computerized 270 Degree hat Frame Driver not only for FUJA embroidery machines but also for Tajima/Happy/Brother embroidery machines seamlessly compatible

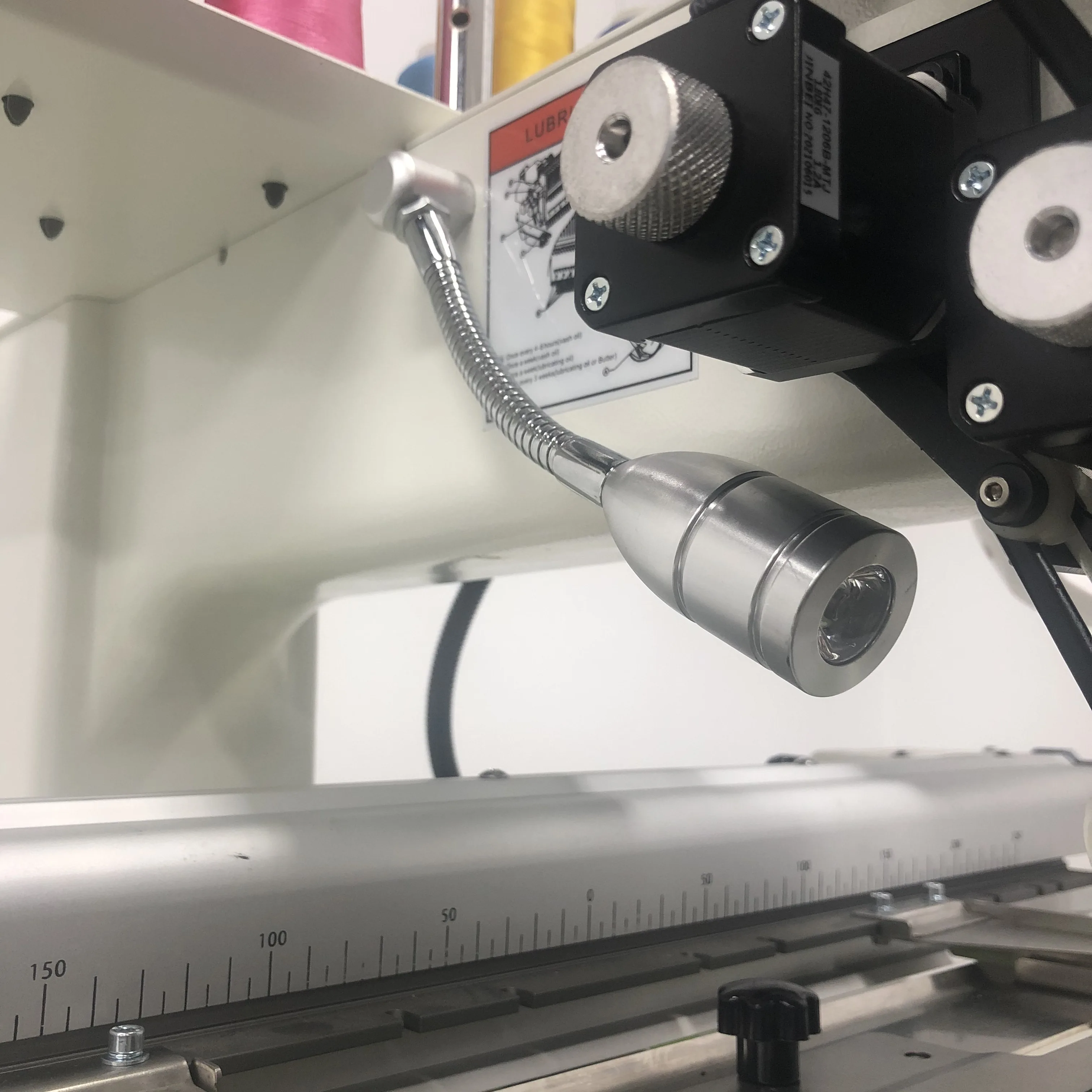

Mighty Bright Embroidery (1 set bulit-in)

* Powerful LED casts brilliant white light Illuminates difficult to see threads, dark fabrics, and matching seams.

* Adjustable 5.5" bendable neck holds the light in place

Automatic bobbin winder ( 1 set )
*The electric winder can be installed on the table, which is very convenient.
*When you need to complete large projects quickly, this automatic winding machine can save a lot of time.

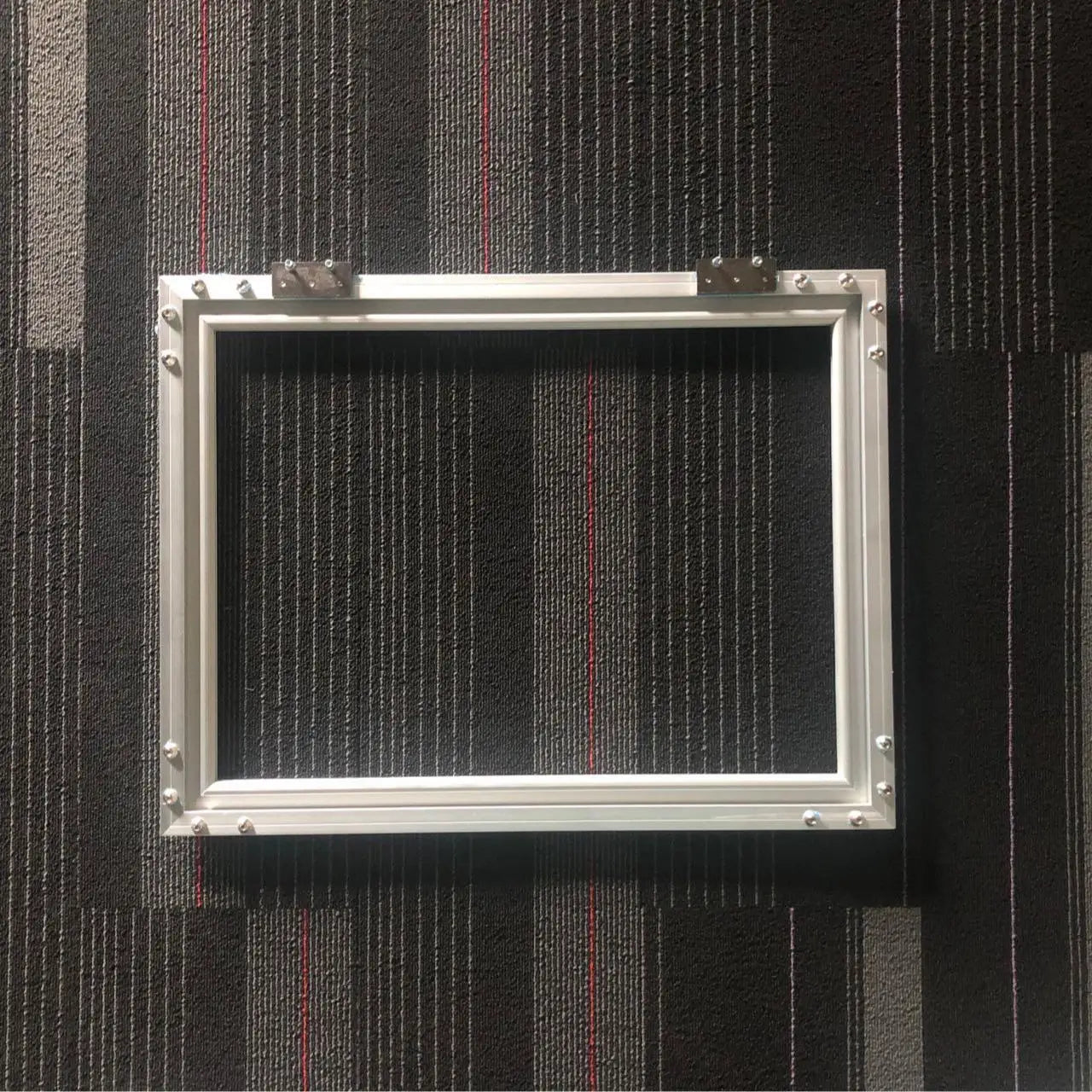

Sash Frame (1 set)
reduce vibrations and increase machine stabilization. you can embroider highly detailed designs on large and heavy items at high speeds without compromising speed and efficienc y

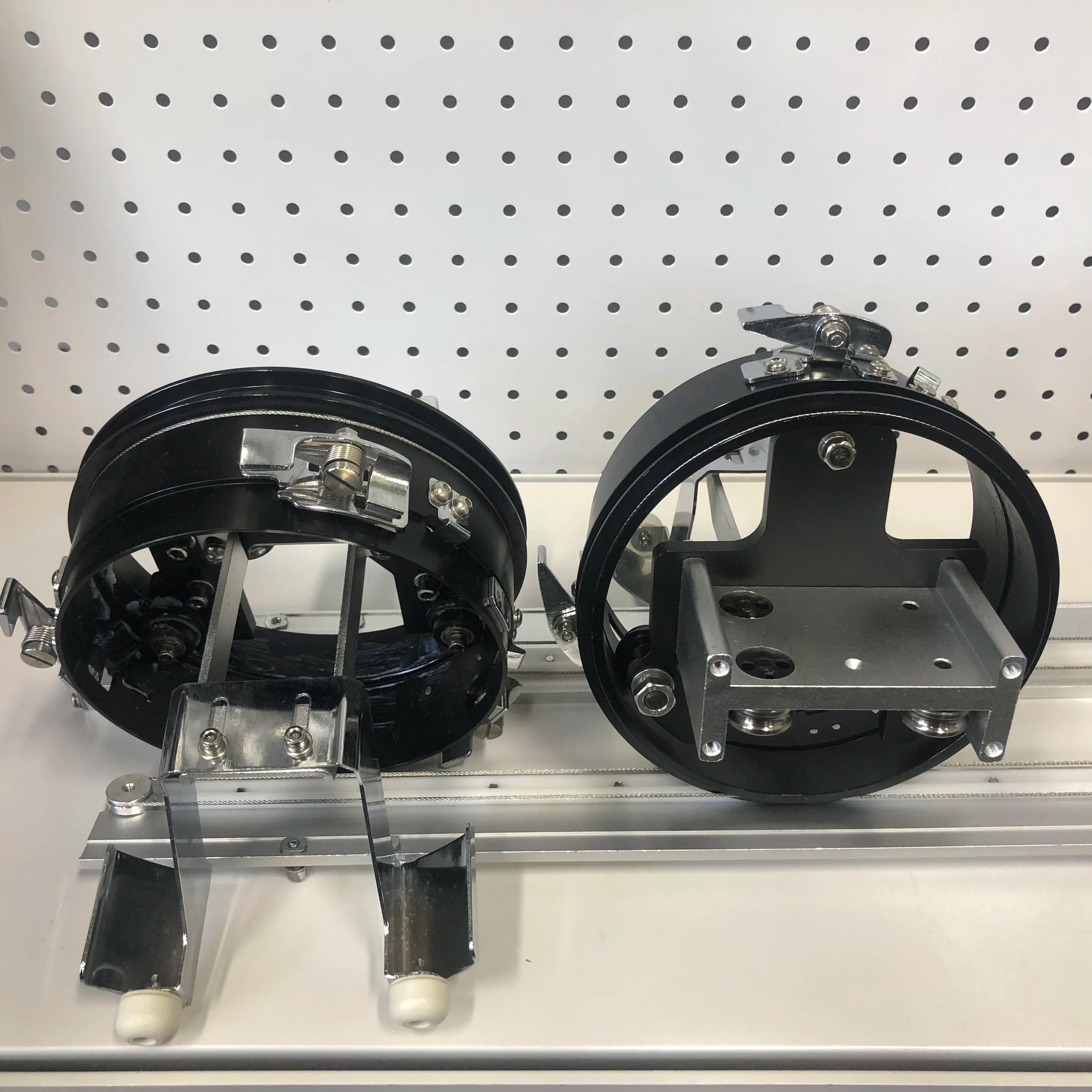

FUJA CAP RING

FUJA has the latest and highest standards in the industry for accessories of cap rings and cap driver. FUJA embroidery machines are fully compatible with TAJIMA's cap rings such as TAJIMA - (GENERIC) 270 WIDE CAP FRAME (DOUBLE BAND).

Designed for women's hand strength characteristics, pay more attention to safety performance and ease of use,FUJA has its own cap ring------more safe and easy.

FUJA CAP STATION



FUJA has cap frames to fit all major name branded machines including:Tajima, Melco, Toyota, Barudan Advantage, ZSK, Meistergram,
Happy, Highland, Inbro, SWF, Podigi,etc.

FUJA also has its own designed cap station with high-standard quality and ease of use.



                                                               OPTIONAL ACCESSORIES

WORKS WELL ON DIFFICULT MATERIALS

Ordinary embroidery machines can easily lose stability when embroidering on leather, PU materials and other relatively thick and other difficult fabrics.

In this regard.FUJA specially developed and improved.For many professional users can obviously feel that FUJA machines are very cost-effective and understands users compared with those big brand machines.

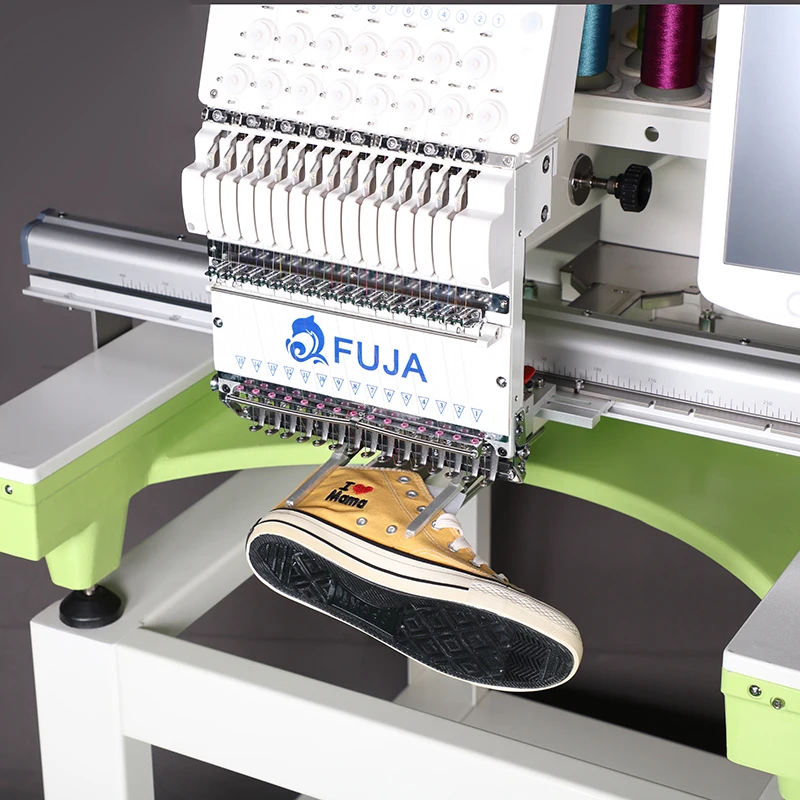

POWERFUL OPTIONAL  SHOES FRAME

The adjustable shoe frame is different than any other clamping system available.

The frame's shape is designed with all shoe types in mind – the arm clamps are independent of each other which helps with the varying thicknesses & padding along the side of the shoe.

In addition to having independent clamps, the frame allows for width adjustment to work with the various shoe styles.

8-In-1 DEVICE OPTIONAL

Suitable for cap/hat embroidery ,flatembroidery, t-shirt embroidery, garment embroidery ,shoe embroidery, bag embroidery,logo embroidery.sequin embroidery,taping embroidery ,cording embroidery,towel embroidery,bead embroidery,rhinestone broidery,mixed embroidery.

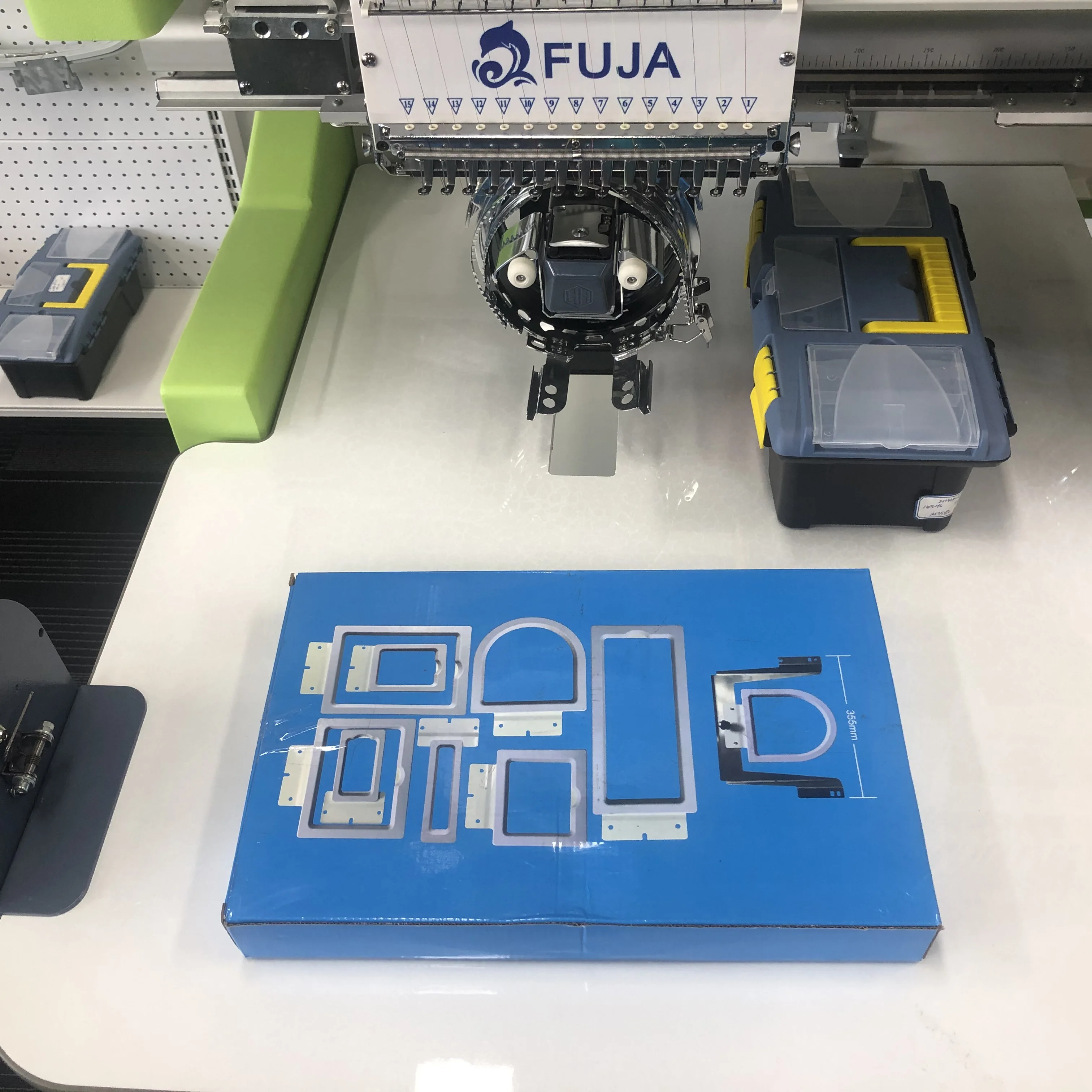

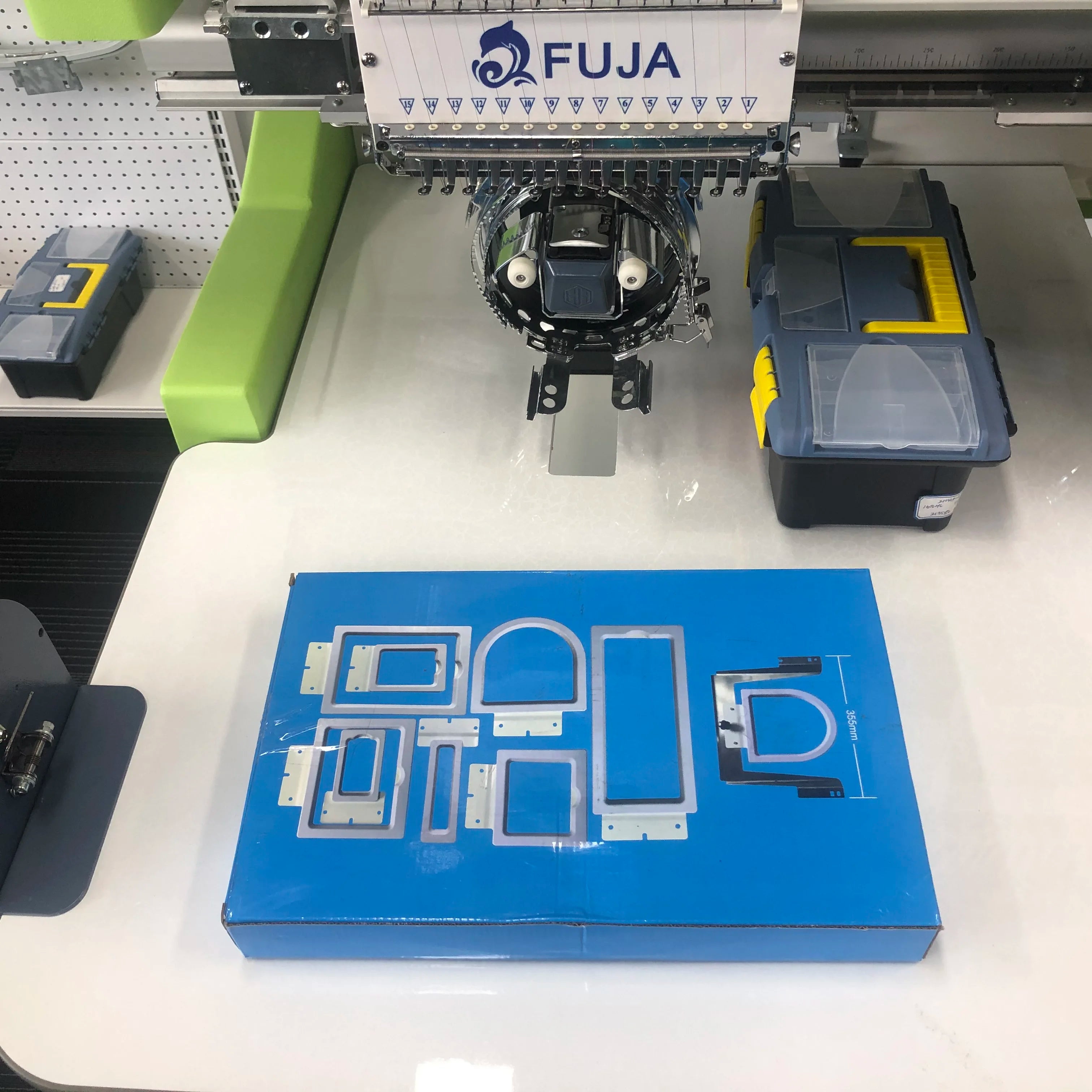

Belt Frames	Embroider on belts, sashes, collars, and more
Blanket Frames	Specially Created for Hard to Hoop Items
Magnetic Flat Frame	Designed to clamp fabric with magnetic force automatically
Pocket Embroidery Frames	In the 8-In-1 device
Bag Embroidery Frames	In the 8-In-1 device
Master Bracket	In the 8-In-1 device
Sleeve Embroidery Frame	In the 8-In-1 device
Ribbon / Tape Hoop	for band widths between 15mm and 35mm

With the FUJA 8-in-1 hoop Kit, your dreams to embroider on various types of difficult products have come true.

It will enhance your embroidering experiences.

FUJA 8-in-1 hoop set allows you to accomplish those very difficult embroidering challenges such as shirt pockets, socks, cap backs, bags, shirt sleeves, collar tips, gloves, cuffs of sleeves, ribbons, CD cases, etc

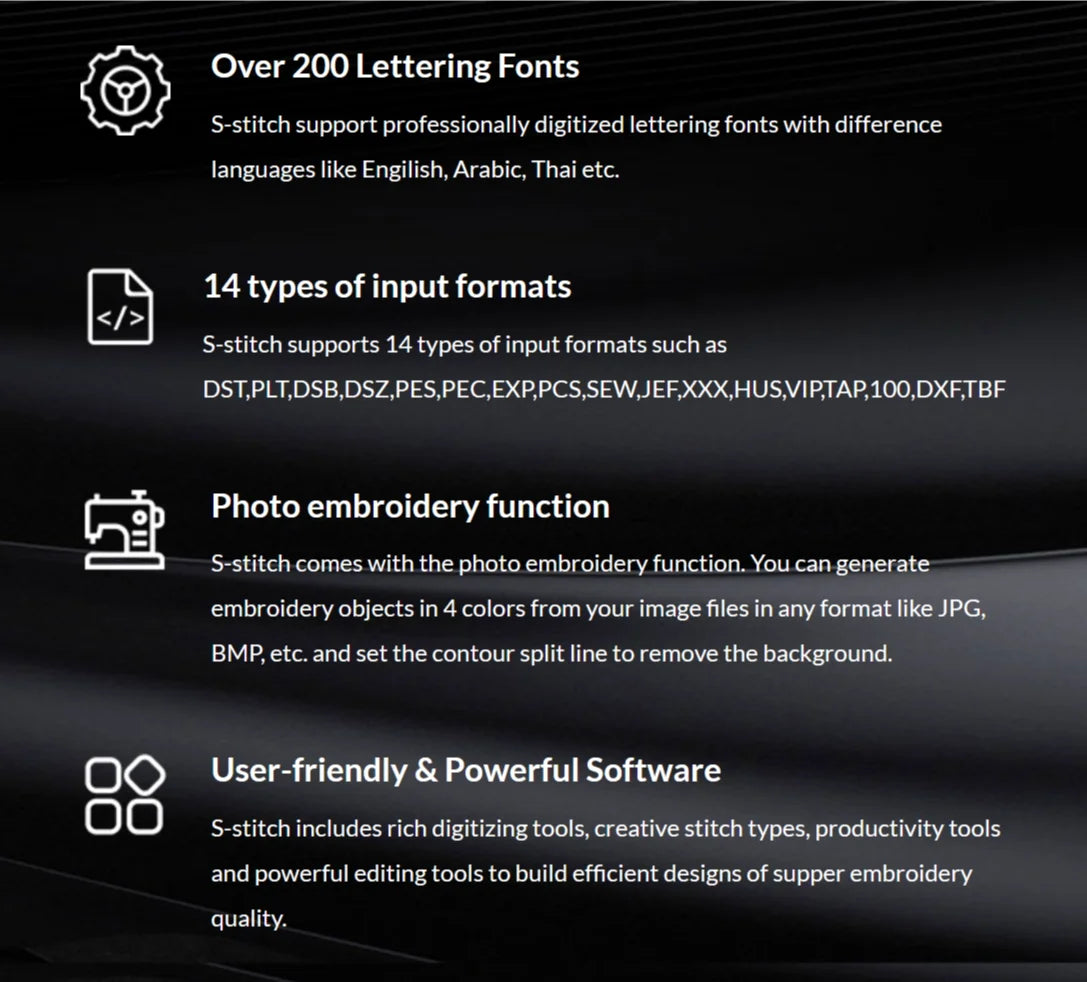

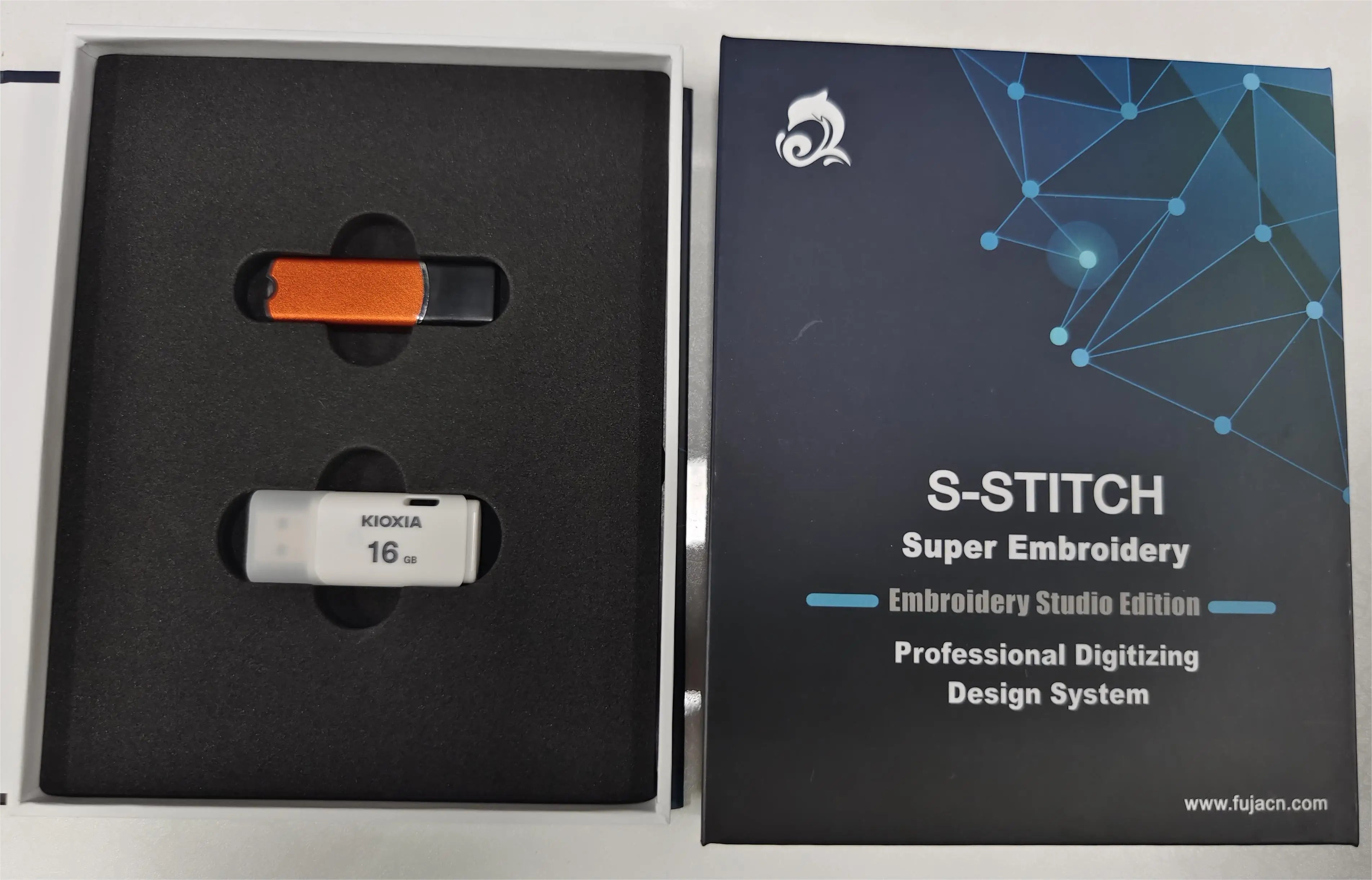

POWER S-STITCH EMBROIDERY SOFTWARE

                                 WHAT YOU CAN ASK FOR FUJA SPEICALLY  DEVICES  (OPTIONAL)

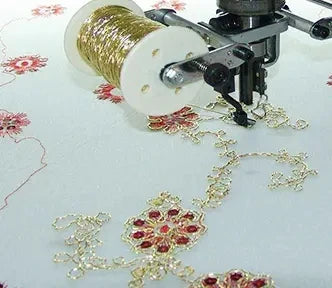

FUJA ROPE STITCH EMBROIDERY

FOR PRO USER

FUJA SEQUIN EMBROIDERY SAMPLE

FRENCH STYLE CASE



FUJA TAPE -COILING EBM DEVICE

FOR DUBAI CASE

SOME EMBROIDERY CASES
